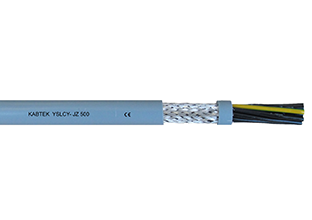

02-YSLCY-JZ-500
These cables are suitable for flexible use for medium. mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air, as measuring and sentral cables, in tool machines, conveyor belts, production lines, in machinery, production, in airconditioning, and, in steel production.
* Catalog data is subject to change, please contact us for up-to-date information.
Operating voltage: 300/500 V
Test voltage: 2000V
Insulation resistance: Min 20 Mohm x Km
Capacitance (800 Hz): Max. 120 pf/m
Operating temperature: -30 ...+70°C
Max. Short-circuit temperature: Max. 160°C
Bending radius: Min.7,5 x 0
Flame retardant: IEC 60332-1-2
| Conductor | Annealed stranded copper wire (HD 383 S2 CIaSs 5) |
| Insulation | PVC compound (HD 21.1 S4 / TI1) |
| Core Identification | Green/Yellow and numbered cores |
| Lay-up | In layers stranding |
| Separator | Polyester tape |
| Screen |
Tinned copper braid screen |
| Outer sheath | PVC compound (HD 21.1 S4 / TM2) |
| Sheath Color | RAL 7001 Gray |
| Structural dimension tests | DIN VDE 472 Teil 401, 402 |
| Mechanical tests |
DIN VDE 472 Teil 303, 602, 603, 604, 608, 609, 610, 612 620, 804, 808 |
| Electrical tests |
DIN VDE 472 Teil 502, 504, 509, 510 |
| Fire performance tests | VDE 0482-332-1-2 |
|
Core Numbers x |
O.D approx |
Copper Factor |
Cable Weight approx |
|
2x0.5 |
5.7 |
35.0 |
45.0 |
|
3G0.5 |
5.9 |
42.0 |
55.0 |
|
4G0.5 |
6.4 |
47.0 |
61.0 |
|
5G0.5 |
6.9 |
56.0 |
74.0 |
|
6G0.5 |
7.6 |
67.0 |
89.0 |
|
7G0.5 |
7.6 |
69.0 |
98.0 |
|
8G0.5 |
8.7 |
80.0 |
117.0 |
|
10G0.5 |
9.6 |
94.0 |
135.0 |
|
12G0.5 |
9.7 |
108.0 |
157.0 |
|
14G0.5 |
10.2 |
116.0 |
190.0 |
|
16G0.5 |
11.0 |
129.0 |
210.0 |
|
18G0.5 |
11.5 |
145.0 |
217.0 |
|
20G0.5 |
12.2 |
172.0 |
240.0 |
|
21G0.5 |
12.7 |
188.0 |
250.0 |
|
24G0.5 |
13.5 |
235.0 |
300.0 |
|
25G0.5 |
13.6 |
240.0 |
314.0 |
|
30G0.5 |
14.4 |
295.0 |
360.0 |
|
32G0.5 |
14.9 |
301.0 |
425.0 |
|
34G0.5 |
15.6 |
312.0 |
433.0 |
|
36G0.5 |
15.6 |
318.0 |
446.0 |
|
40G0.5 |
16.9 |
343.0 |
475.0 |
|
41G0.5 |
16.9 |
348.0 |
486.0 |
|
50G0.5 |
18.5 |
406.0 |
573.0 |
|
61G0.5 |
19.7 |
508.0 |
653.0 |
|
2x0.75 |
6.1 |
40.0 |
59.0 |
|
3G0.75 |
6.3 |
52.0 |
66.0 |
|
4G0.75 |
6.8 |
60.0 |
77.0 |
|
5G0.75 |
7.4 |
71.0 |
93.0 |
|
6G0.75 |
8.2 |
80.0 |
113.0 |
|
7G0.75 |
8.2 |
91.0 |
130.0 |
|
8G0.75 |
9.6 |
110.0 |
145.0 |
|
10G0.75 |
10.3 |
137.0 |
180.0 |
|
12G0.75 |
10.5 |
142.0 |
202.0 |
|
14G0.75 |
11.3 |
180.0 |
225.0 |
|
16G0.75 |
11.9 |
200.0 |
275.0 |
|
18G0.75 |
12.7 |
212.0 |
292.0 |
|
19G0.75 |
127 |
230.0 |
308.0 |
|
20G0.75 |
13.3 |
238.0 |
320.0 |
|
21G0.75 |
14.0 |
246.0 |
378.0 |
|
24G0.75 |
14.9 |
270.0 |
435.0 |
|
25G0.75 |
15.0 |
281.0 |
415.0 |
|
27G0.75 |
150 |
304.0 |
435.0 |
|
30G0.75 |
15.8 |
320.0 |
450.0 |
|
32G0.75 |
16.7 |
342.0 |
484.0 |
|
34G0.75 |
17.2 |
345.0 |
502.0 |
|
36G0.75 |
17.2 |
350.0 |
535.0 |
|
37G0.75 |
17.2 |
361.0 |
592.0 |
|
40G0.75 |
18.6 |
369.0 |
610.0 |
|
41G0.75 |
18.6 |
400.0 |
622.0 |
|
50G0.75 |
20.3 |
461.0 |
777.0 |
|
61G0.75 |
21.7 |
540.0 |
900.0 |
|
2x1 |
6.4 |
50.0 |
65.0 |
|
3G1 |
6.7 |
60.0 |
80.0 |
|
4G1 |
7.2 |
71.0 |
98.0 |
|
5G1 |
8.0 |
88.0 |
127.0 |
|
6G1 |
8.7 |
97.0 |
144.0 |
|
7G1 |
8.7 |
111.0 |
158.0 |
|
8G1 |
10.1 |
127.0 |
197.0 |
|
10G1 |
11.2 |
150.0 |
232.0 |
|
12G1 |
11.4 |
184.0 |
260.0 |
|
14G1 |
12.0 |
196.0 |
302.0 |
|
16G1 |
12.8 |
209.0 |
346.0 |
|
18G1 |
13.5 |
260.0 |
380.0 |
|
19G1 |
13.5 |
280.0 |
412.0 |
|
20G1 |
14.3 |
317.0 |
440.0 |
|
24G1 |
16.0 |
320.0 |
493.0 |
|
25G1 |
16.2 |
349.0 |
534.0 |
|
27G1 |
16.2 |
400.0 |
562.0 |
|
28G1 |
17.0 |
480.0 |
595.0 |
|
30G1 |
17.0 |
441.0 |
616.0 |
|
34G1 |
18.5 |
486.0 |
741.0 |
|
37G1 |
18.5 |
519.0 |
790.0 |
|
40G1 |
19.9 |
510.0 |
835.0 |
|
41G1 |
19.4 |
531.0 |
843.0 |
|
2x1.5 |
7.0 |
63.0 |
88.0 |
|
3G1.5 |
7.5 |
80.0 |
100.0 |
|
4G1.5 |
8.1 |
97.0 |
126.0 |
|
5G1.5 |
11.4 |
170.0 |
160.0 |
|
7G1.5 |
12.6 |
193.0 |
208.0 |
|
8G1.5 |
12.8 |
267.0 |
244.0 |
|
10G1.5 |
12.6 |
193.0 |
315.0 |
|
12G1.5 |
12.8 |
267.0 |
338.0 |
|
14G1.5 |
13.5 |
283.0 |
383.0 |
|
16G1.5 |
14.4 |
315.0 |
424.0 |
|
18G1.5 |
15.4 |
374.0 |
479.0 |
|
19G1.5 |
15.4 |
396.0 |
508.0 |
|
20G1.5 |
61.1 |
396.0 |
545.0 |
|
21G1.5 |
17.0 |
|
560.0 |
|
24G1.5 |
18.2 |
458.0 |
690.0 |
|
25G1.5 |
18.4 |
526.0 |
705.0 |
|
27G1.5 |
18.4 |
531.0 |
774.0 |
|
35G1.5 |
20.8 |
645.0 |
890.0 |
|
37G1.5 |
20.8 |
674.0 |
945.0 |
|
40G1.5 |
22.6 |
725.0 |
1060.0 |
|
41G1.5 |
22.6 |
801.0 |
1071.0 |
|
2x2.5 |
9.0 |
144.0 |
130.0 |
|
3G2.5 |
9.8 |
148.0 |
167.0 |
|
4G2.5 |
9.8 |
174.0 |
195.0 |
|
5G2.5 |
|
181.0 |
223.0 |
|
7G2.5 |
11.9 |
255.0 |
344.0 |
|
10G2.5 |
15.5 |
340 |
460.0 |
|
12G2.5 |
15.8 |
441.0 |
570.0 |
|
18G2.5 |
18.9 |
570.0 |
681.0 |
|
2x4 |
9.8 |
120.0 |
185.0 |
|
3G4 |
10.6 |
174.0 |
240.0 |
|
4G4 |
11.5 |
230.0 |
310.0 |
|
5G4 |
12.7 |
273.0 |
385.0 |
|
7G4 |
14.0 |
316.0 |
500.0 |
|
2x6 |
11.7 |
173.0 |
268.0 |
|
3G6 |
12.5 |
240.0 |
330.0 |
|
4G6 |
13.8 |
305.0 |
415.0 |
|
5G6 |
15.3 |
439.0 |
509.0 |
|
7G6 |
16.9 |
505.0 |
672.0 |
|
2x10 |
14.7 |
255.0 |
425.0 |
|
3G10 |
15.7 |
350.0 |
500.0 |
|
4G10 |
17.3 |
535.0 |
783.0 |
|
5G10 |
19.2 |
592 |
856.0 |
|
7G10 |
21.4 |
810.0 |
1305.0 |
|
4G16 |
20.4 |
740.0 |
880.0 |
|
5G16 |
22.6 |
895.0 |
1295.0 |
" Not rec¢immended used for direct underground burial
" G = With green/yellow earth core X = without earth core
" Standard packaging
Coil < 30 kg and 250 mt < Drum
" See the technical annexes for current carrying capacities
